HTDWD1060TB1
10kg + 6kg 600 Series
Multi Washer Dryer
Heat Pump Main Drum
- 600 Series
Sort your laundry pile and wash everything at the same time with a 10kg + 6kg heat pump washer dryer, plus two specialist washer dryers. It’s true laundry separation.
- Finish
- Dark
10kg + 6kg 600 Series
Multi Washer Dryer
Heat Pump Main Drum
- Three independent washer dryers for true laundry separation
- UV Protect eliminates 99.99% of bacteria in all drums*
- 3 Smart Dose cartridges automatically measure the right detergent dose
- Express 15 and Express 29 for loads that need a quick turnaround
- 12 advanced stain settings for marks like coffee, oil, ink, sweat and more
Height
1370mm
Width
600mm
Depth
595mm

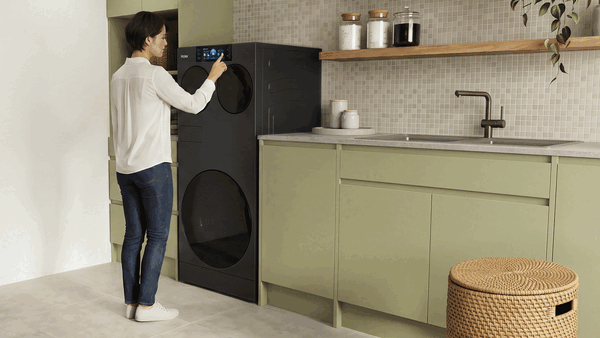

Wash and dry, big and small, all at once
Designed for busy homes that care about laundry separation. With a 10kg + 6kg heat pump washer dryer main drum and two specialist washer dryers, you can stop stressing about which clothes you can mix and what needs to wait. Give that smelly sports top a quick wash, target an ink stain on a pair of school shorts, and wash and dry all the towels in one go — all separately, all at the same time.
Give every load the care it deserves
With 14 wash-to-dry cycles in the main drum, and more specialist cycles in the two smaller drums, you can choose the right care for each load. From bedding to hand-wash wool, infantwear to underwear, each cycle tailors heat, movement, water and time to suit. For smaller loads, the specialist drums also deliver incredible efficiency, using up to 77% less water and up to 56% less energy* when washing compared to the main drum. *Based on internal testing comparing a 0.5kg consumer load in the specialist drums and main drum using comparable everyday cycles (Smart Wash for the left and right drums, and Mixed Wash for the lower drum), with Energy Saving Off, Normal Temp and 1000 rpm
Energy-smart heat pump technology
Heat pump drying in the main drum uses warm air to remove moisture, before reheating the same air in a closed-loop system. Vent-free and quiet, it delivers a 7-star energy rating for drying with a controlled heat you can trust. Two smaller condenser washer dryers support separate small loads.

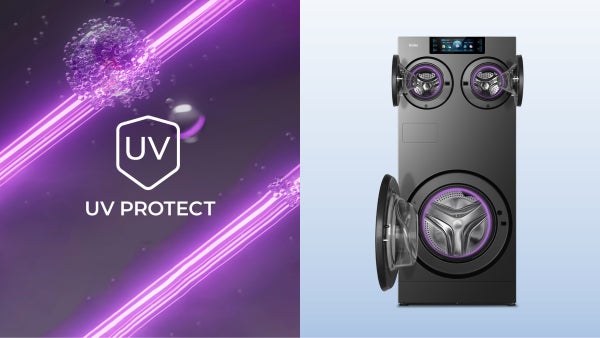

UV Protect in every drum
UV Protect is available in all three drums and uses UV light to eliminate 99.99%* of bacteria. Instead of relying on a hot wash cycle, UV Protect eliminates bacteria by passing the wash water under a UV light. It works across multiple cycles and adds an extra layer of hygiene care to your wash. Anti-Bacterial Treatment (ABT) in the gasket of each drum also helps keep the machine itself hygienic between washes. *Independently tested to eliminate greater than 99.99% of Staphylococcus aureus and E. coli using the Smart Wash cycle for the left and right drums, and the Mixed cycle for the main drum

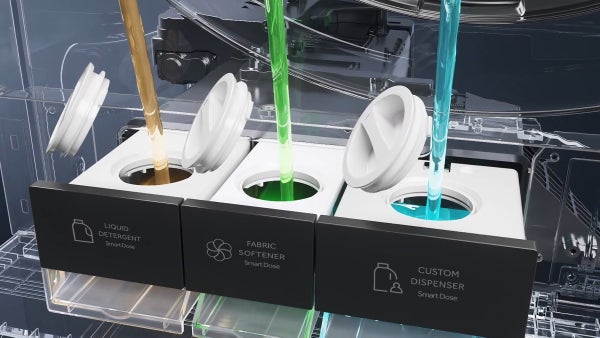

Get detergent right in every load without measuring
What's the right amount of detergent? Smart Dose takes care of it for you, drum by drum. Simply fill the three chambers with detergent, softener or a specialist liquid for items like delicates or baby clothes, and the washer handles the rest. It calculates the right dose for the selected drum and program, while Essence Wash pre-mixes detergent with water before it enters the drum. With enough capacity for up to 44 washes* before the next refill, it’s one less thing on your laundry list. *Based on internal testing using summed chamber volume in the main drum at a 4kg load (average NZ load size); number of washes varies by load size and applies across all cycles that use detergent.
Target 12 stain types in their own drum
Coffee on jeans. Grass on school shorts. Sweat on sports gear. The Stain Treatment function gives you 12 settings to help target common marks. Simply choose the drum, the cycle and the stain type, so items that need extra and immediate attention can be treated separately while the rest of the washing keeps moving.

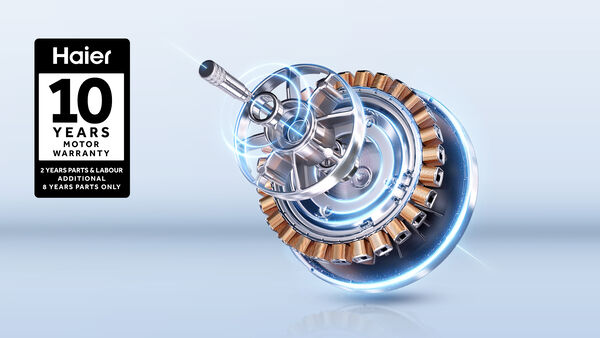

Built for trusted performance
With three dedicated direct drive motors, each drum gets its own power and control. Attached directly to the drum with no belt and fewer moving parts, these motors help deliver quieter, smoother and more efficient care over time. It’s the reliable engineering you expect from the world’s number one major appliance brand for 17 consecutive years*. *Source Euromonitor International Limited; Consumer Appliances 2026ed, % unit share, 2025 volume sales data. Major Appliances category is the sum of dishwashers, home laundry appliances, large cooking appliances, microwaves and refrigeration appliances. Volume sales refers to sales in retail channel, builder merchants and construction channel.
Specifications
- Height
- 1370mm
- Width
- 600mm
- Depth
- 595mm
Capacity
| Capacity Attributes | Value |
|---|---|
| Main drum capacity | 10 (Wash) + 6 (Dry)kg |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating main drum | 4.5 star |
| Energy usage main drum | 116kWh/year |
| Water consumption per cycle | 86L |
| Water rating (WELS) main drum | 4.5 star (Wash) + 7 star (Dry) |
Continuous Wash & Dry Cycles
| Continuous Wash & Dry Cycles Attributes | Value |
|---|---|
| Allergy Care | Main drum |
| Bedding | Main drum |
| Bulky | Main drum |
| Cotton | Main drum |
| Durable (Care +) | Main drum |
| Express 15 | Main drum, Left drum, Right drum |
| Express 29 | Main drum |
| Infantwear | Main drum, Left drum |
| Mixed | Main drum |
| Pet wear | Right drum |
| Rinse and spin | Main drum, Left drum, Right drum |
| Shirts | Main drum |
| Smart wash | Left drum, Right drum |
| Socks | Right drum |
| Spin | Main drum, Left drum, Right drum |
| Sportswear | Main drum, Left drum |
| Synthetic | Main drum |
| Towels | Main drum |
| Underwear | Left drum |
Dry Cycles
| Dry Cycles Attributes | Value |
|---|---|
| Time Dry | Main drum |
Features
| Features Attributes | Value |
|---|---|
| + Garment | Main drum |
| Adjustable feet height | |
| Adjustable rinse options | |
| Adjustable spin speed control | |
| Adjustable spin time | 4 (No Spin, Short, Med, Long) |
| Adjustable temperature control | |
| Anti-Bacteria Treatment (ABT) in the gasket | |
| Auto balancing drum | |
| Auto load sensing | |
| Auto out of balance correction | |
| Auto sense dry | |
| Automatic door lock | |
| Automatic water level | |
| Child/Keylock | |
| Continuous wash and dry cycles | |
| Delay start | |
| Detergent dispenser | |
| Drum light | |
| Dual spray | Main drum |
| Easy access lint filter | |
| Essence Wash | |
| Fabric softener dispenser | |
| Favourite mode | |
| Iron ready | |
| Power on indicator | |
| Progress indicator | |
| Push to open | doors, dispenser |
| Reverse tumbling | |
| Single spray | Left drum, Right drum |
| Smart dosing | |
| Stain treatment | Advanced |
| Time to go | |
| UV Sanitise | |
| Water supply | Cold |
| Woolmark certified |
Performance
| Performance Attributes | Value |
|---|---|
| Condenser dryer | Left drum, Right drum |
| Direct drive motor technology | |
| Heat pump dryer | Main drum |
| Spin speeds | No Spin, 400, 600, 800, 1000, 1200, 1400 |
| Wash temperatures | Cold, 20, 30, 40, 60, 90 |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 595mm |
| Height | 1370mm |
| Width | 600mm |
Stain Treatment
| Stain Treatment Attributes | Value |
|---|---|
| Blood | |
| Coffee | |
| Grass | |
| Ink | |
| Juice | |
| Lipstick | |
| Milk | |
| Oil | |
| Soil | |
| Sweat | |
| Tea | |
| Wine |
Wash Cycles
| Wash Cycles Attributes | Value |
|---|---|
| Allergy Care | Main drum |
| Baby shoes | Right drum |
| Bedding | Main drum |
| Bras | Left drum |
| Bulky | Main drum |
| Coloured | Left drum |
| Cotton | Main drum |
| Delicate | Main drum, Left drum |
| Down | Main drum |
| Drum Clean | Main drum, Left drum, Right drum |
| Durable | Main drum |
| Express 15 | Main drum, Left drum, Right drum |
| Express 29 | Main drum |
| Infantwear | Main drum, Left drum |
| Mixed | Main drum |
| Pet wear | Right drum |
| Rinse and Spin | Main drum, Left drum, Right drum |
| Sense Dry | Main drum, Left drum, Right drum |
| Shirts | Main drum, Left drum, Right drum |
| Smart wash | Left drum, Right drum |
| Spin | Main drum, Left drum, Right drum |
| Sports | Main drum, Left drum |
| Synthetic | Main drum |
| Towels | Main drum |
| Underwear | Left drum |
| Wool | Main drum |
Wash Program Modifiers
| Wash Program Modifiers Attributes | Value |
|---|---|
| Eco | |
| Soak | |
| Speed up | |
| UV Sanitise |
